HVAC & Ventilation

Air quality, comfort, and energy efficiency all start with the air you breathe—and the systems that move it. Welcome to HVAC & Ventilation, where heating, cooling, and airflow meet precision and performance. Whether your furnace needs a tune-up, your A/C has lost its chill, or you’re upgrading to a smart climate control system, this is your guide to every duct, vent, and thermostat in the house. Here you’ll uncover articles that demystify everything from filter changes and airflow balancing to thermostat programming and energy audits. Learn how to diagnose strange system noises, seal leaky ductwork, and keep your home’s air fresh and healthy year-round. Our expert tutorials and pro maintenance insights are built to empower homeowners and DIYers alike—combining technical accuracy with hands-on know-how. From the furnace room to the attic vents, HVAC & Ventilation on Drill and Skills helps you master the comfort systems that keep your home breathing right.

1. System types: furnace + A/C, heat pump (ducted/mini-split), dual fuel, and packaged units.

2. Sizing: perform Manual J load calc—avoid rule-of-thumb tonnage to prevent short cycling.

3. Duct design: Manual D for sizing/layout; keep runs short, smooth, and properly sealed.

4. Airflow targets: ~350–450 CFM per ton across the coil; verify with static/CFM checks.

5. Filtration: choose MERV for needs (11–13 for most homes); match to blower capacity.

6. Thermostats: single/two-stage, heat pump mode, and smart control compatibility.

7. Condensate management: traps, cleanouts, slope, float switch, and outdoor discharge path.

8. Refrigerant lines: correct size/insulation; observe max length/elevation guidelines.

9. Ventilation: spot fans + whole-home (ERV/HRV) to meet fresh-air targets and humidity control.

10. Permits/inspections: combustion air, clearances, gas/electrical, and code compliance.

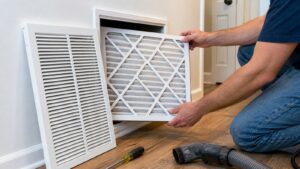

1. Replace/clean the filter; clogged media causes weak airflow and icing.

2. Thermostat check: fresh batteries, correct mode, schedule, and temperature offset.

3. No cool/heat: verify breakers, outdoor disconnect, and furnace service switch.

4. Frozen coil: set fan to ON, COOL off; after thaw, fix airflow/filter issues.

5. Water at furnace: clear condensate trap/line with wet/dry vac; confirm float switch.

6. Dusty vents: remove registers, vacuum, and wipe; re-seat for proper throw.

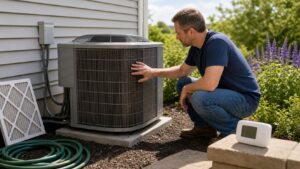

7. Outdoor unit care: gently rinse condenser fins; keep 24" clearance all sides.

8. Hot/cold rooms: open/adjust dampers, straighten crushed flex, verify supply/return paths.

9. Rattles/whistles: tighten panels, add foam tape, check filter door and duct joints.

10. Short cycling: check filter, thermostat placement (away from vents/sun), and sizing issues.

1. Digital manometer for static pressure and filter/coil pressure drop readings.

2. Anemometer + pitot tube for approximate airflow/CFM checks at grills.

3. IR thermometer and contact probe for supply/return temperature split.

4. Coil cleaning pump, fin comb, and nylon brush for safe condenser/evaporator care.

5. Wet/dry vac and condensate brush for traps and drain maintenance.

6. Smoke pencils for draft/backdraft and infiltration detection.

7. Mastic + foil tape (UL-listed) for durable duct sealing—skip cloth “duct tape.”

8. Headlamp, magnetic tray, and nut drivers for tight air-handler spaces.

9. Ladder and coil guard wash nozzle for safe outdoor unit access/cleaning.

10. Refrigerant gauges/leak detector (pros only)—diagnostics require licensing.

1. Target external static ~0.5 in. w.c. (varies by unit); high static kills airflow and equipment.

2. Seal ducts with mastic and mesh; prioritize returns and attic/crawl runs.

3. Support flex duct every 4 ft with wide straps; minimal sag and gentle bends.

4. Balance supply/return: add jump ducts or undercut doors to complete return paths.

5. Charge & combustion tuning are pro tasks; DIY stops at airflow/cleanliness.

6. Dehumidification: lower CFM/ton or stage cooling; keep indoor RH ~30–50%.

7. Ventilation strategy: spot fans + ERV/HRV sized to whole-home needs.

8. Insulate linesets and boots; seal boots to drywall to prevent leakage.

9. Set smart thermostats with modest setbacks to avoid comfort swings.

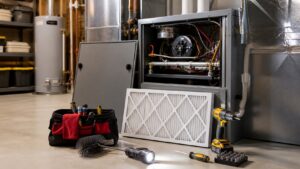

10. Create a spring/fall tune-up checklist—filter, coil, blower, drains, safeties.

1. ECM blower motors use less energy and maintain target airflow under changing static.

2. Heat pumps can heat efficiently in cold climates with variable-speed compressors.

3. ERVs exchange heat and moisture; HRVs exchange heat only—choose by climate.

4. Higher MERV improves capture but adds pressure drop—balance with blower capability.

5. Two-stage/variable systems run longer, quieter cycles for better comfort and humidity control.

6. Economizer/fresh-air dampers can cool with outdoor air when conditions permit.

7. Duct leakage often exceeds 15% in older homes—sealing can be the biggest “efficiency upgrade.”

8. Oversized equipment cools fast but dehumidifies poorly—comfort beats raw BTUs.

9. Supply registers are engineered for throw/mix; mis-aimed vanes cause drafts.

10. Mini-splits excel in additions/retrofits where ducts are impractical.

Q: How often should I change filters?
A: Every 1–3 months (pets/dust = more often); check monthly.

Q: Why are some rooms hotter/colder?
A: Duct leaks, poor balance, or blocked returns—inspect and adjust dampers.

Q: Is closing vents a good idea?
A: No—raises static pressure and can reduce system life.

Q: What temp split should I see?
A: Cooling supply/return ~15–20°F under normal humidity.

Q: My outdoor unit runs but no cool air.
A: Check filter/coil; if still bad, call a pro for refrigerant/charge issues.

Q: Furnace smells on first run?
A: Dust burn-off is common; if smoky/chemical or persistent, shut down and call.

Q: Best humidity range?
A: Aim for 30–50% RH; use ventilation/dehumidification as needed.

Q: Do I need annual service?
A: Yes—spring (cooling) and fall (heating) checkups catch issues early.

Q: Will a higher MERV filter harm my system?
A: If blower can’t handle pressure drop—choose balanced media or upgrade blower.

Q: When should I replace my system?
A: 12–15 years typical; rising repairs, noise, and efficiency losses are cues.
